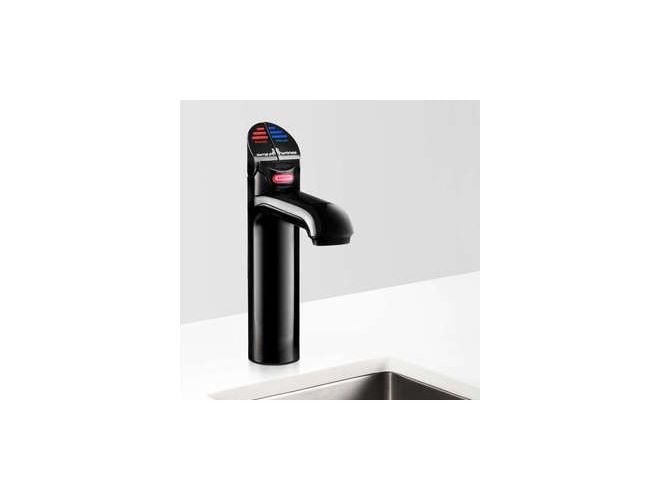

Zip Classic HydroTap G4 Boiling & Chilled Water Gloss Black
- Boiling Water & Chilled Filtered Water
- Advanced Filtration
- Unique Safety Features
- Touchscreen Diagnostics
- Residential Use
ZIP CLASSIC HYDROTAP G4 BOILING AND CHILLED FILTERED WATER IN GLOSS BLACK FINISH
Zip HydroTap Classic offers instant filtered boiling water the iconic industrial design of the Classic remains a much loved and popular choice suited to any home. A safe energy-efficient and highly functional appliance which has different models to suit a range of needs.
Filtered water appliance featuring a single under bench command centre including full colour interactive touch screen display with pin code protection, 2 boiling water safety modes, 3 energy saving modes including sensor activated "sleep when its dark" and 0.2 micron water filtration
Advanced Filtration
Integral 0.2 micron NSF certified Zip MicroPurity filtration system offers 25 times better filtration than a standard water filter jug, eliminating bad taste and odour of chlorine, heavy metals and impurities as tiny as one fivethousandth of a millimetre, but leaving beneficial fluoride.
Power-Pulse™ technology
Reduces energy consumption by allowing the system to regulate its power during periods of high and low usage.
Unique safety features
The Zip HydroTap is designed with safety front of mind, with boiling isolation, cool touch tap and safety lock features.
Touchscreen diagnostics
The compact under-counter unit includes a simple PIN code protected touchscreen that puts the user in total control of the system, including temperature, dispensing time, safety features, energy-saving settings and continuous auto-diagnostics.
Five year warranty
This system is covered by a comprehensive full parts and labour warranty for 36 months, with an additional 24 months boiling tank cover
Also available in Bright Chrome, Brushed Chrome and Matt Black
| MODEL |
MIXED HOT AND COLD |
FILTRATION 0.2 MICRON |
FONT | CO2 |
NOMINAL POWER RATING KW |
COMMAND CENTRE DIMENSIONS W X D X H |
| HT1784Z2UK | Y | Y | Y | N | 1.43 kW @ 230V | 280mm x 313mm x 335mm |
|
Specification Type |
|
| Product Code | HT1784Z2UK |
| Product Name | HydroTap G4 Classic boiling/chilled gloss black for residential |
| Capacity, Weights & Dimensions | |
| Water functions | Boiling |
| Unit dimension (W x D x H) | 338mm x 461mm x 333mm |
| Product weight - empty / full | |
| Plumbing | |
| Wholesome water inlet supply required | Cold Feed |
| Water Valves | Integrated 5 bar Pressure limiting valve and Dual Check Valve |
| Supply connection (hot & cold) | 1/2" BSP |
| Installation | Must comply with current water supply regulations |
| Electrical | |
| Command centre power rating | 1.55 kW @ 230V |
| Voltage supply | 13 amps |
| Power supply requirements | 1 x 13amp socket outlet |
| Cable length | 1.8m fitted with UK standard 3-pin plug |
| Installation | Must comply with current IEE regulations |
| Tap design | |
| Style | HydroTap Classic |
| Finish | Gloss Black |
| Installation hole cut size | |
| Rotation | Fixed |
| Disability options | No |
| Country of Origin | Australia |
| Command Centre | |
| Factory temperature boiling | 98°C |
| Filtration | 0.2 Micron Filter Cartridge |
| Flow rate | |
| Wholesome water supply requirements | Cold Feed |
| Refrigerant | R134a |
| Tank material | PPS |
| Country of origin | Australia |
Installation Requirements
"1. Installation and connection of your Zip HydroTap must be carried out by a qualified person, observing national and local regulations.
2. You will require suitable mains electrical and drinking water connections, plus waste water drainage all within 1 metre of the product.
3. HydroTap is air-cooled so discrete cabinetry cut-outs are required for ventilation.
4. Installation on most bench tops is straightforward however some stone bench tops may require a specialised cutting service.
5. If you live in a hard water area, we recommend installation of a Zip scale filtration kit.
