Zip Arc HydroTap 160/175 G5 Boiling Chilled Gun Metal
- Environmentally conscious operation
- Unique user-safety options
- Advanced filtration
- Enhanced hygiene

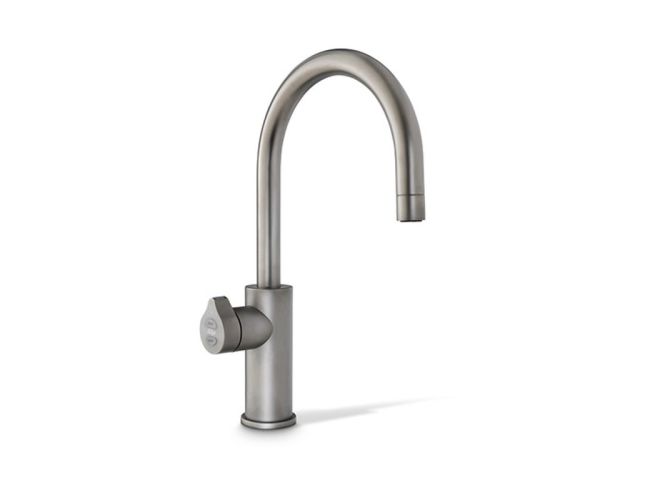

Zip Arc HydroTap 160/175 G5 Boiling Chilled Gun Metal
Achieve a homely design in the workplace with the HydroTap Arc, offering you a choice of instant filtered boiling and chilled water from one beautifully designed tap and under counter command centre. Featuring market-leading 0.2-micron MicroPurity filtration technology, the Arc offers 25 times more effective filtration than a standard water filter jug - making it the best of any instant filtered water tap in the world. To priories user safety at work, the Arc doesn't splash or spit when dispensing water, with boiling water safety locks and cool touch technology. What's more, the HydroTap features superior technology to conserve water while saving energy and time.
Advanced filtration
Zip MicroPurityTM filters remove particles larger than 0.2 micron, such as dirt, lead and microplastics, as well as 97% of chlorine and 99.9% of microbiological cysts, providing pure-tasting drinking water.
Enhanced hygiene
The 5th generation HydroTap command centre has SteriTouch® embedded throughout the water path. This reduces surface bacteria by 99.99% providing extra protection.
Environmentally conscious operation
The HydroTap boasts a range of eco-friendly functionalities, including water conserving air cooling technology, the use of zero-impact refrigerant gas R290 and energy saving sleep modes.
Unique user-safety options
The Zip HydroTap is designed with safety in mind, with boiling isolation, cool touch tap and safety lock features. The boiling point is factory set to 98 degrees celsius, to avoid spluttering steam.
Five Year Warranty
This system is covered by a comprehensive full parts and labour warranty for 24 months, with an additional 36 months boiling tank cover.
MODEL |
MIXED HOT AND COLD |
FILTRATION 0.2 MICRON |
FONT | CO2 |
NOMINAL POWER RATING KW |
COMMAND CENTRE DIMENSIONS W X D X H |
H52704Z09UK | N | Y | Y | N | 2.13 kW @ 230V AC | 500mm x 490-520mm x 373mm |
Specification Type |
|
Product Code | H52704Z09UK |
Product Name | HydroTap G5 Arc boiling chilled 160/175 gun metal for work |
Capacity, Weights & Dimensions | |
Water functions | Boiling, Chilled |
Boiling capacity | 160 Cups per hour |
Chilled capacity | 175 Glasses per hour |
Unit dimension (W x D x H) | 500mm x 490-520mm x 373mm |
Product weight - empty / full | 28kg / 33kg |
Plumbing | |
Wholesome water inlet supply required | Cold Feed |
Supply pressure range | 1.7bar - 5bar |
Supply connection (hot & cold) | 1 x isolated 1/2"bsp BSP fitting (flexible supply hoses included) |
Installation | Must comply with current water supply regulations |
Electrical | |
Command centre power rating | 2.13 kW @ 230V AC |
Voltage supply | 13 amps |
Power supply requirements | 1 x 13amp socket outlet |
Cable length | 1.8m fitted with UK standard 3-pin plug |
Installation | Must comply with current IEE regulations |
Tap design | |
Style | HydroTap Arc |
Finish | Gun Metal |
Installation hole cut size | 35mm |
Rotation | Fixed |
Disability options | No |
Country of Origin | Australia |
Command Centre | |
Factory temperature boiling | 98°C |
Factory temperature chilled | 6-10°C |
Filtration | 0.2 Micron Filter Cartridge |
Flow rate | 4.0 l/min |
Wholesome water supply requirements | Cold Feed |
Refrigerant | R290 |
Tank material | Stainless Steel |
Country of origin | Australia |
