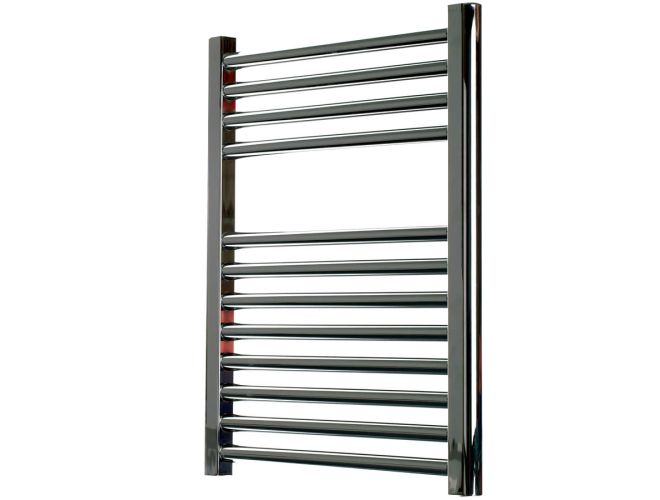

Wet Room Electric Straight Towel Radiator
- Controlled Externally
- Maximum Surface Temperature: 65°C
- IP67
- Thermal Protection
- Maintenance-Free
These Platinum wet room electric towel radiators do not have an on/off switch, meaning they must be controlled externally. In prevention of over heating the radiator is fitted with a bimetal temperature limiter and has an exceptionally high degree of water ingress protection of IP67. The unit can be installed in zone one environments and are avaliable in a range of sizes and power outputs.
Features:
- Maintenance-free
- Outputs from: 842 - 2307 BTU/hr
- Tube size: Ø22
- Maximum surface temperature 65ºC
- Thermal protection in case the radiator is turned on dry with no inhibitor solution
- Enables cooperation with external timers or intelligent building systems
- Can be installed in zone 1
- Cable length: 1.5m
- Element Warranty: 3 Years
- Protection from water spray, water jets - waves all directions and temporary immersion in water
800:
Product Code | Height (mm) | Width (mm) | BTU / Watts |
Tubes / Size Ø (mm) |
PWRCF4080 | 800 | 400 | 842 / 246 | 14 x Ø22 |
PWRCF5080 | 800 | 500 | 937 / 274 | 14 x Ø22 |
PWRCF6080 | 800 | 600 | 1036 / 304 | 14 x Ø22 |
1000-1200:
Product Code | Height (mm) | Width (mm) | BTU / Watts |
Tubes / Size Ø (mm) |
PWRCF40100 | 1000 | 400 | 1064 / 312 | 16 x Ø22 |
PWRCF50100 | 1000 | 500 |
1187 / 348 | 16 x Ø22 |
PWRCF60100 | 1000 | 600 |
1314 / 185 | 16 x Ø22 |
PWRCF40120 | 1200 | 400 | 1239 / 364 | 20 x Ø22 |
PWRCF50120 | 1200 | 500 | 1378 / 404 | 20 x Ø22 |
PWRCF60120 | 1200 | 600 | 1517 / 445 | 20 x Ø22 |
1600-1800:
Product Code | Height (mm) | Width (mm) | BTU / Watts |
Tubes / Size Ø (mm) |
PWRCF40160 | 1600 | 400 | 1636 / 479 | 26 x Ø22 |
PWRCF50160 | 1600 | 500 | 1819 / 533 | 26 x Ø22 |
PWRCF60160 | 1600 | 600 | 2000 / 587 | 26 x Ø22 |
PWRCF40180 | 1800 | 400 | 1859 / 546 | 30 x Ø22 |
PWRCF50180 | 1800 | 500 | 2068 / 607 | 30 x Ø22 |
PWRCF60180 | 1800 | 600 | 2279 / 669 | 30 x Ø22 |
